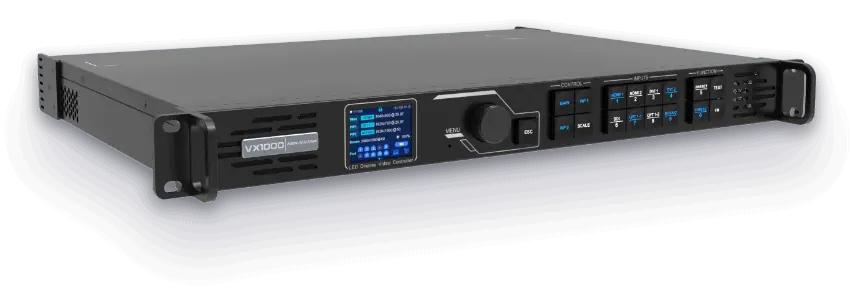

The VX1000 features 10 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX1000 unit can drive up to 6.5 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels, respectively, which is ideal for ultra-wide and ultra-high LED screen applications. The VX1000 is capable of receiving a variety of video signals and processing high-resolution 4K×1K@60Hz images. In addition, the device features stepless output scaling, low latency, 3D, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience. What’s more, the VX1000 can work with NovaStar’s supreme software NovaLCT and V-Can to greatly facilitate your in-field operations and control, such as screen configuration, Ethernet port backup settings, layer management, preset management and firmware update. Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX1000 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens. Specifications Loading Capacity: 6.5 million pixels Maximum pixel width & height: Width up to 10,240 pixels Height up to 8,192 pixels Layers: 3x 4K×1K Inputs: 2x HDMI1.4 1x DVI (HDMI 1.4) 1x 3G-SDI 1x OPT1 Outputs: 10x Ethernet Ports for LED Screen connection 1x HDMI (Monitoring or Output) 1x HDMI1.4 LOOP 1x DVI LOOP 1x 3G-SDI LOOP 2x OPTICAL for LED Screen connection Control: GENLOCK (IN & LOOP):Yes 1x Ethernet Port 1x USB-A 1x USB-B Low Latency: Yes Input Source Backup: Yes Bypass Mode: Yes Fiber Converter Mode: Yes Electrical & Environmental: Power connector 100240V~, 1.5A, 50/60Hz Rated power consumption 28 W Temperature 10°C to +60°C Humidity 20% RH to 90% RH, non-condensing Dimensions & Weight: Dimensions 483.6 mm × 351.2 mm × 50.1 mm Weight 4 kg Included accessories: 1x Power cord 1x HDMI to DVI cable 1x USB cable1x Ethernet cable 1x HDMI cable 1x Quick Start Guide 1x Certificate of Approval 1x Customer Letter 1x Safety Manual
