Beschreibung

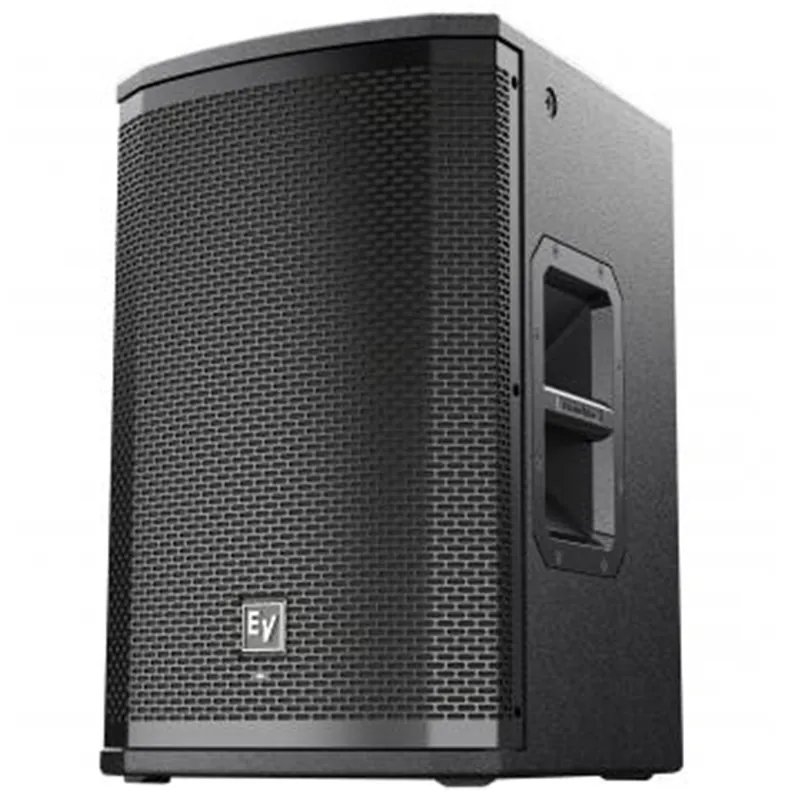

10-inch LF SMX woofer1.25-inch HF titanium compression driver2000 W Class-D power amplifier with integrated FIR-Drive DSP134 dB peak SPL Frequency Range 65 Hz 20 kHz Full space measurement using the music DSP preset and 150 Hz low pass. Maximum SPL 134 peak dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output. Power Consumption 100 240 V~, 50 60 Hz, 1.6 0.8 A Current rating is 1/8 power. Power Rating 2000 W Frequency Response 85 Hz 20 kHz Full space measurement using the music DSP preset and 150 Hz low pass. Coverage (Nominal -6 dB) H 90 ° Coverage (Nominal -6 dB) V 60 ° LF Transducer SMX2100 254 mm (10 in) HF Transducer DH3-B 1.25-in titanium compression driver Crossover Frequency 1700 Hz Connector Type (2) XLR/TRS combo jack and (1) XLR link output Enclosure Material 18-mm, 13-ply birch plywood with EVCoat Grill 16AWG steel with powdercoat Suspension (8) M10 suspension points Height 526 mm Width 330 mm Depth 365 mm Weight Net 20.3 kg Shipping Weight 22.9 kg
