Beschreibung

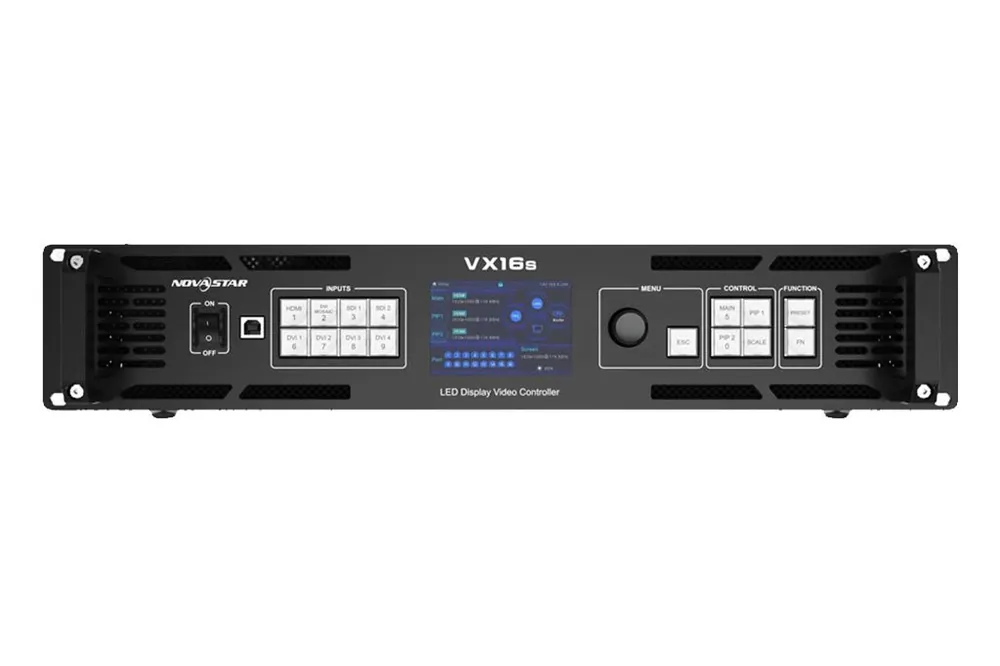

The VX16s is NovaStars new all-in-one controller that integrates video processing, video control and LED screen configuration into one unit. Together with NovaStars V-Can video control software, it enables richer image mosaic effects and easier operations. The VX16s supports a variety of video signals, Ultra HD 4K×2K@60Hz image processing and sending capabilities, as well as up to 10,400,000 pixels. Thanks to its powerful image processing and sending capabilities, the VX16s can be widely used in applications such as stage control systems, conferences, events, exhibitions, high-end rental and fine-pitch displays. Industry-standard input connectors 2x 3G-SDI (Interlaced and Progressive scan supported) 1x HDMI 2.0 (Interlaced signal NOT supported) 4x SL-DVI (Interlaced signal NOT supported) Output 16 Ethernet output ports load up to 10,400,000 pixels. 3 independent layers 1x 4K×2K main layer 2x 2K×1K PIPs (PIP 1 and PIP 2) Adjustable layer priorities Output Frame rates: 23.98 Hz, 24 Hz, 25 Hz, 29.97 Hz, 30 Hz, 47.95 Hz, 48 Hz, 50 Hz, 56 Hz, 59.94 Hz, 60 Hz, 70 Hz, 71.93 Hz, 72 Hz, 75 Hz, 85 Hz, 100 Hz, 119.88 Hz and 120 Hz. DVI mosaic Up to 4 DVI inputs can form an independent input source, which is DVI Mosaic. Input resolutions/Frame Rates Supported standard frame rates/resolutions: 1024×768 @ (48/50/59.94/60/75/85)Hz 1280×720 @ (23.98/24/25/29.97/30/48/50/59.94/60)Hz 1280×1024 @ (48/50/59.94/60/75/85)Hz 1364×768 @ (50/59.94/60)Hz 1366×768 @ (50/59.94/60)Hz 1440×900 @ (60/75/85)Hz 1600×1200 @ (48/50/59.94/60)Hz 1680×1050 @ 60Hz 1920×1080 @ (23.98/24/25/29.97/30/48/50/59.94/60)Hz 1920×1200 @ (50/59.94/60)Hz 2048×1080 @ (30/48/50/59.94/60)Hz 2048×1152 @ (30/60)Hz 2560×1080 @ (50/59.94/60)Hz 2560×1600 @ (50/59.94/60)Hz 2560×1600 @ 120Hz 3840×1080 @ 30Hz 3840×1080 @ (50/59.94/60)Hz 3840×1080 @ 120Hz 3840×2160 @ (23.98/24/25/29.97/30)Hz 3840×2160 @ (50/59.94/60)Hz 3D Supports 3D display effect on the LED screen.The device output capacity will be halved after the 3D Personalized image scaling Three scaling options are pixel-to-pixel, full screen and custom scaling. Image mosaic Up to 4 devices can be linked to load a super large screen when used together with the video distributor. Easy device operation and control through VCan Up to 10 presets can be saved for future use. EDID management Custom EDID and standard EDID supported Device backup design In backup mode, when the signal is lost or the Ethernet port fails on the primary device, the backup
